MC-50 Automatic Capping Machine

The MC-50 Automatic Capping Bottles And Jars glass or PET

Finance

Want flexible paying options? S.C.Packaging has finance options that can help you, allowing you to make a low cost monthly payment to purchase your packaging machinery and equipment

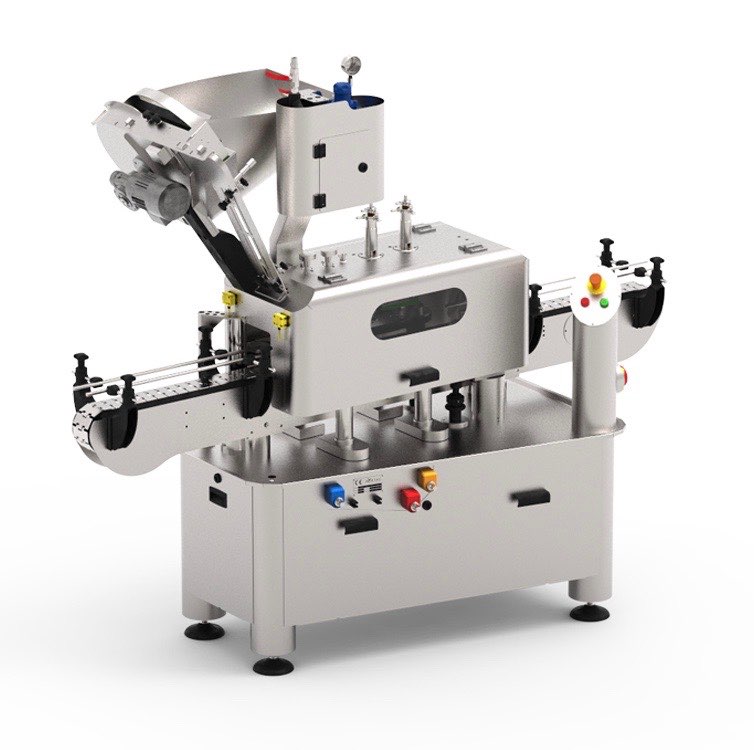

The MC-50 model is an automatic capping machine, designed to seal vials, bottles and jars, made of glass or PET, with twist off lids.

The MC-50 automatic capping machine is designed for customers with small and medium-sized production.


The MC-50 offers high levels of energy efficiency. The MC-50 only needs one main motor to power the whole machine.

Apart from the significant energy savings, the MC-50 achieves the required synchronism without the need for electronics.

It has an ultra quick format changing system with a unique design, making adjustments easy.


An ergonomic design, the MC-50 was created for everyday use, offering easy access to all parts of the machine for adjustment and cleaning.

Manufactured and designed in accordance with food safety standards, the MC-50 automatic capping machine offers a multiform working philosophy, with no tool change necessary for continuous production.


The MC-50 capping machine may be set up for:

• Steam installation.

• Double securing strap for the container.

• OIL securing system, for cases where the container has oil on it.

• Functioning with lids with a high skirt.

MC-50 Details

• Electrical requirements 2Kw, (240v/400v) 50Hz

• Steam installation 5-8 bar, 50-110 kg/hour

• Steam connection 1/2″

• Water installation 0.45 m3/h, 1/4″

• Production speed Up to 120 containers/min depending on the format

• Type of lids Twist-Off
